End of Life Notice
* Effective Date: 2022/05/13

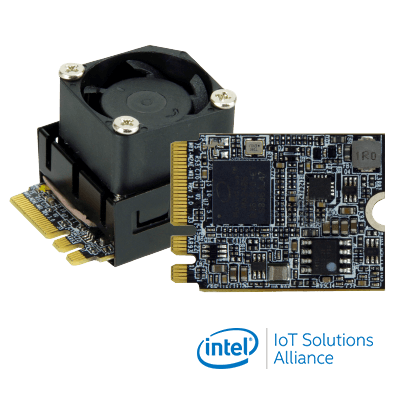

» M.2 AE key form factor (22 x 30 mm)
» 1 x Intel® Movidius™ Myriad™ X VPU MA2485
» Power efficiency, approximate 4.5W
» Operating Temperature -20°C to 60°C
» Powered by Intel’s OpenVINO™ toolkit
Hardware Spec.
| System | |
|---|---|
| Chipset | 1 x Intel® Movidius™ Myriad™ X MA2485 VPU |
| Cooling method / System Fan | Active fan |
| Physical Characteristics | |
| Dimensions (LxWxH) (mm) | 113 X 56 X 23 |
| Power | |
| Power Consumption | Approximate 15W |
| Environment | |
| Operating Temperature | -20°C ~ 60°C |
| Humidity | 5% ~ 90% |
| Card Slot Interface | |
| PCIe | Gen 2 x 2 |
Ordering Information
| Mustang-M2AE-MX1-R10 | Deep learning inference accelerating M.2 AE key card with 1 x Intel® Movidius™ Myriad™ X MA2485 VPU, M.2 interface 22mmx30mm, RoHS |
|---|
