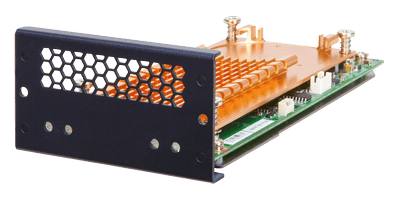

PulM-M2-2S

M.2 PCIe SSD expansion card supports two M.2 2280 PCIe NVMe (3.0 x4) SSDs; two PCIe 3.0 x4 host interface

End of Life

End of Life Notice

* Effective Date: 2024/09/06

• Supports two M.2 2280 PCIe NVMe (3.0 x4) SSDs
• M.2 SSD temperature is monitored in real time by sensor IC
• 2 PCIe 3.0 x4
• LED indicator shows the M.2 status
• RoHS compliant

Specifications

Hardware Spec.

Physical Characteristics
Dimensions (LxWxH) (mm) 165.50 (L) x 77.8 (W) x 44.2 (H)
Environment
Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature -20°C ~ 75°C (-4°F ~ 167°F)
Humidity 5% ~ 90% RH, Non-condensing
Certifications
Safety & EMC RoHS
Card Slot Interface
M.2 2 x M key 2260/2280/22110 (PCIe 3.0 x4/NVMe)

Ordering Information

PulM-M2-2S-R10 M.2 PCIe SSD expansion card supports two M.2 2280 PCIe NVMe (3.0 x4) SSDs; two PCIe 3.0 x4 host interface

Package Contents

Package Content

  • 1 x PulM-M2-2S

  • 1 x L-shaped T10 Plum Wrench

  • 2 x Torx Screws

  • 4 x M.2 SSD Screws

  • 2 x Thermal Pad kit

  • 1 x QIG
