End of Life Notice
* Effective Date: 2022/11/30

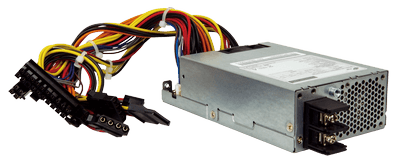

250W 24V DC input 1U ATX Power Supply
Hardware Spec.
| General | |
|---|---|
| Dimensions | 150 x 81.5 x 40.5 |
| Efficiency | 80% |
| MTBF | 100000 |
| Operating temperature | 0°C ~ 50°C |
| Storage temperature | -20°C ~ 80°C |
| Watt | 250W |
| Input | |
| Voltage | 18 ~ 36 VDC input |
| Input Current | 18 A (RMS) @ -24 VDC |
| Output | |
| Voltage | +3.3V/10A,+5V/14A,+12V1/18A,-12V/0.3A,+5Vsb/2.5A |
| Over Voltage Protection |
+ 3.3 Vdc:3.7V~4.5V +5Vdc:5.7V~6.5V +12Vdc:13.3V~15.5V |
| Short Circuit Protection | +3.3V, +5V, +12V shutdown and latch off |
Ordering Information
| ACE-A4520D-R11 | 1U flex ATX 250W Power Supply;24VDC;CCL;RoHS |
|---|
