End of Life Notice
* Effective Date: 2022/11/01

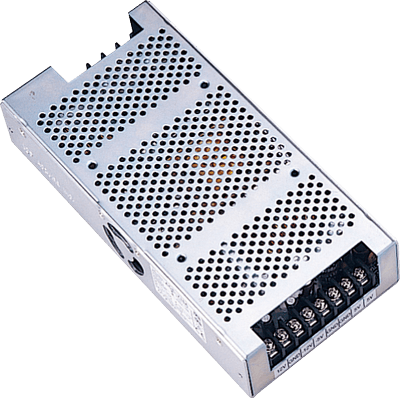

150W 1U Type AT Power Supply
Hardware Spec.
| General | |
|---|---|
| Dimensions | 198 x 97 x 40.5 |
| Efficiency | 75% |
| MTBF | 149000 |
| Operating temperature | -20°C ~ 70°C |
| Storage temperature | -20°C ~ 85°C |
| Watt | 150W |
| Input | |
| Voltage | 85 ~ 265 VAC Full Rang |
| Frequency | 47 ~ 440 Hz |
| Input Current | 18 A (RMS) @ -24 VDC |
| Output | |
| Voltage | +5V/18A,+12V/4A,-12V/1A,-5V/0.5A |
| Over Voltage Protection |
+ 5 V:4.75V~5.25V +12V:11.4V~12.6V -12V:-11.4V~-12.6V -5V:-4.75V~-5.25V |
Ordering Information
| ACE-716AP-RS | Rugged AC input 150W PFC power supply;;;;CCL;RoHS |
|---|
