TANK-880-Q370

High-Performance 8th/9th Generation Intel® Core™ Processor

End of Life

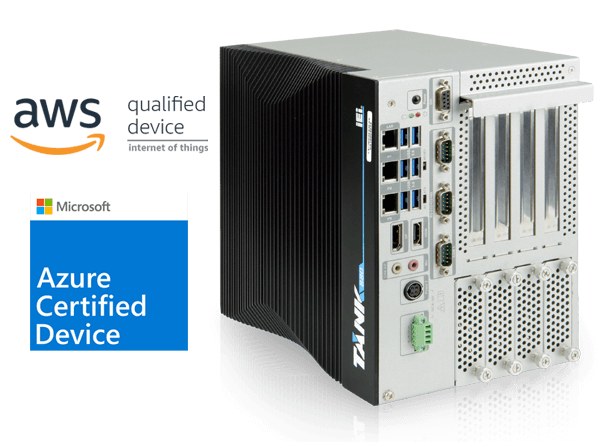

TANK-880 Fanless Embedded System
TANK-880 Fanless Embedded System
  • TANK-880 Fanless Embedded System
  • TANK-880 Fanless Embedded System

End of Life Notice

* Effective Date: 2024/05/17

» 8th/9th Gen Intel® Core™ processor platform with Intel® Q370 chipset and DDR4 memory
» Dual independent displays with high resolution support
» Rich high-speed I/O interfaces
» On-board internal power connector for providing power to add-on cards
» Four accessible 2.5” HDD/SSD SATA 6 Gb/s bay (with RAID 0/1/5/10 support)
» Great flexibility for hardware expansion

Specifications

Hardware Spec.

Form factor
SBC Form Factor
  • CPU:
    8th Gen Intel® Core™ CPU &
    Intel® Core™ i7-9700TE 1.8GHz (up to 3.8GHz, 8-core, TDP 35W)
    Intel® Core™ i5-9500TE 2.2GHz (up to 3.6GHz, 6-core, TDP 35W)
  • Chipset:
    Intel® Q370
  • System Memory:
    2 x SO-DIMM DDR4 2666/ 2400 (8GB pre-installed) (up to 64GB)
  • Power:
    DC Jack: 9 V~36 V DC
    Terminal Block: 9 V~36 V DC
    Consumption: 19V @ 5.4A (Intel® Core™ i7-9700TE with 8GB memory)
  • Reliability:
    Operating Shock: Half-sine wave shock 5G, 11ms, 100 shocks per axis
    Operating Vibration: MIL-STD-810G 514.6C-1 (SSD)
    Safety/EMC: CE/FCC
I/O Interface
I/O Ports
  • Display:
    1 x HDMI™ 1.4b (up to 4096 x 2304@30Hz)
    1 x DP (up to 4096 x 2304@60Hz)
  • 6 x USB 3.2 Gen1
  • Ethernet:
    3 x RJ-45
    1 x PCIe GbE by I219 controller
    2 x PCIe GbE by I210 controller
  • COM Port:
    3 x RS-232/422/485 with AFC (DB-9 w/2.5 kV isolation protection)
  • Digital I/O:
    8 bit Digital I/O (4-input / 4-output)
  • Audio:
    1 x Mic in, 1 x Line out
  • TPM:
    1 x TPM 2.0 (optional)
Expansion Slots
Expansion Slots
  • M.2:
    1 x 2230 A key (PCIe x2/ USB2.0)
    2 x 2280 M key (PCIe x2)
  • PCIe Mini:
    1 x Full-size (PCIe/ USB 2.0/ SATA)
  • Backplane:
    1 x PCIe by 16
    1 x PCIe by 1
    2 x PCIe by 4
System
Cooling method / System Fan Fanless
Drive Bays 4 x 2.5” HDD/SSD SATA 6Gb/s bay (with RAID 0/1/5/10 support)
Indicator&Buttons
Buttons 1 x Power Button
1 x Reset Button
1 x AT/ATX Switch
Indicators 1 x HDD LED
1 x Power LED
Physical Characteristics
Construction Extruded aluminum alloys
Color
Color Black C + Silver
Dimensions
Dimensions 169 x 255.2 x 225 mm
Weight
Weight 5.4 kg/8.45 kg
Environment
Operating Temperature -20°C ~ 60°C with air flow (SSD)
Humidity 10% ~ 95%, non-condensing
OS Support
OS Support Microsoft Windows 10 / Windows 11, Linux

Ordering Information

TANK-880-Q370-i7R/8G/4A-R10 Ruggedized Fanless embedded system with Intel® i7-9700TE 1.8GHz, (up to 3.8GHz, 8-core, TDP 35W), 8GB DDR4 pre-installed memory, 1 x PCIe by 16 & 2 x PCIe by 4 & 1 x PCIe by 1 expansion, HDMI™/DP, 9~36V DC, RoHS
TANK-880-Q370-i5R/8G/4A-R10 Ruggedized Fanless embedded system with Intel® i5-9500TE 2.2GHz, (up to 3.6Hz, 6-core, TDP 35W), 8GB DDR4 pre-installed memory, 1 x PCIe by 16 & 2 x PCIe by 4 & 1 x PCIe by 1 expansion, HDMI™/DP, 9~36V DC, RoHS

Package Contents

Package Content

  • 1 x Chassis Screw

  • 1 x Wall Mount Bracket
