PulM-10G2SF

Intel® Ethernet Controller X710-BM2 based Network Interface Card with 2 x SFP+ by PCIe 3.0 x8 interface

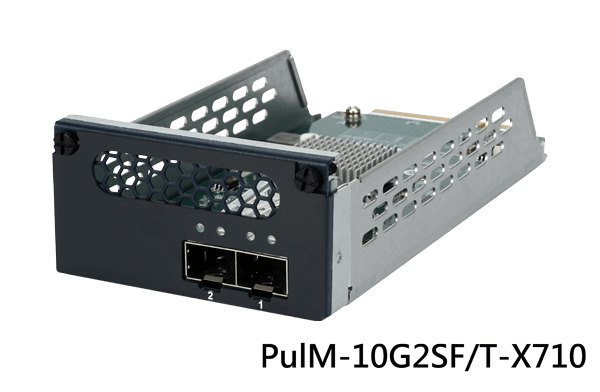

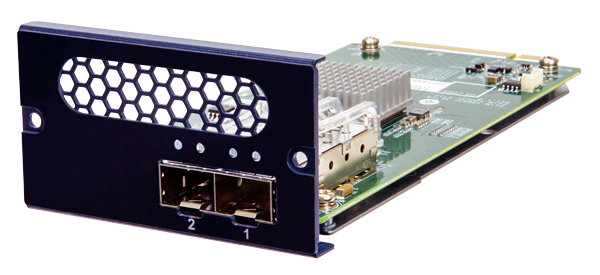

PulM-10G2SF/T-X710 Network Interface Card
  • PulM-10G2SF/T-X710 Network Interface Card
‧1 x Intel® Ethernet Controller X710-BM2
‧2 x 10 GbE SFP+ connectors
‧PCIe 3.0 x8
‧RoHS compliant

Specifications

Hardware Spec.

Physical Characteristics
Dimensions (LxWxH) (mm) 165.50 (L) x 77.8 (W) x 44.2 (H)
I/O Interface
Ethernet 2 x SFP+
Environment
Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature -20°C ~ 75°C (-4°F ~ 167°F)
Humidity 5%~90% RH, Non-condensing
Certifications
Safety & EMC RoHS
Card Slot Interface
PCIe PCIe 3.0 x8
Card Features
Speed 1GbE/10GbE
Controller Chip Intel® Ethernet Controller X710-BM2

Ordering Information

PulM-10G2SF-X710-R10 Intel® Ethernet Controller X710-BM2 based Network Interface Card with 2x SFP+ by 1 PCIe 3.0 x 8 interface.

Package Contents

Package Content

  • 1 x PulM-10G2SF-X710 module

  • 1 x L-shaped T10 Plum Wrench

  • 2 x Torx Screws

  • 1 x QIG
