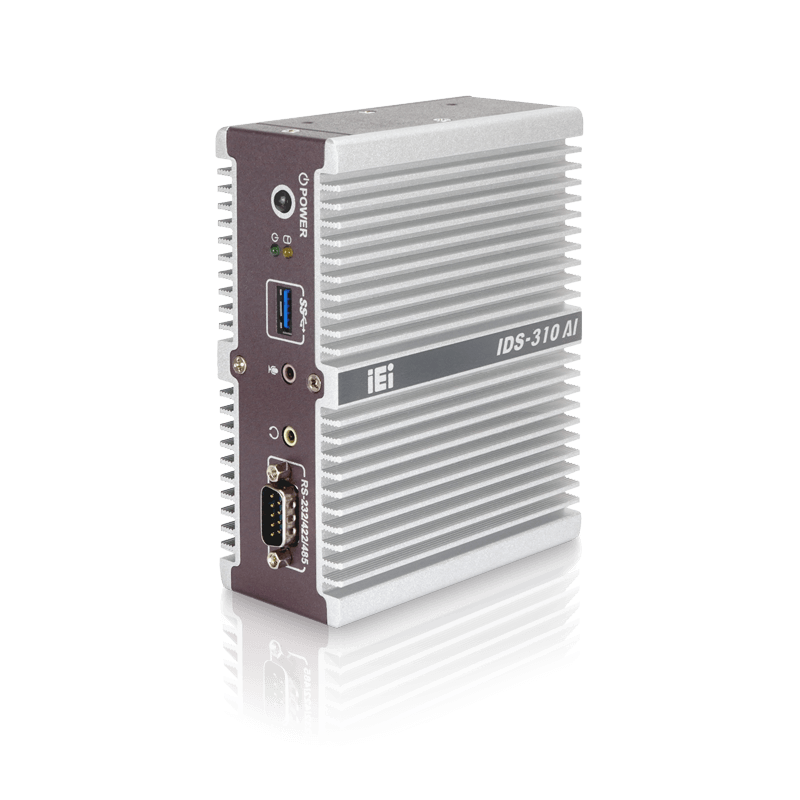

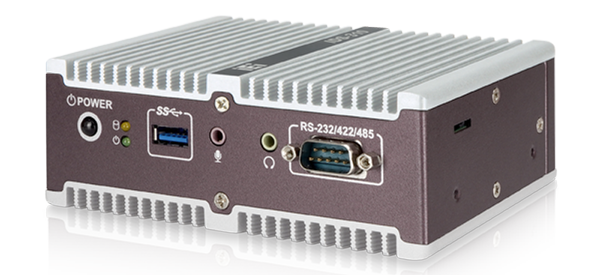

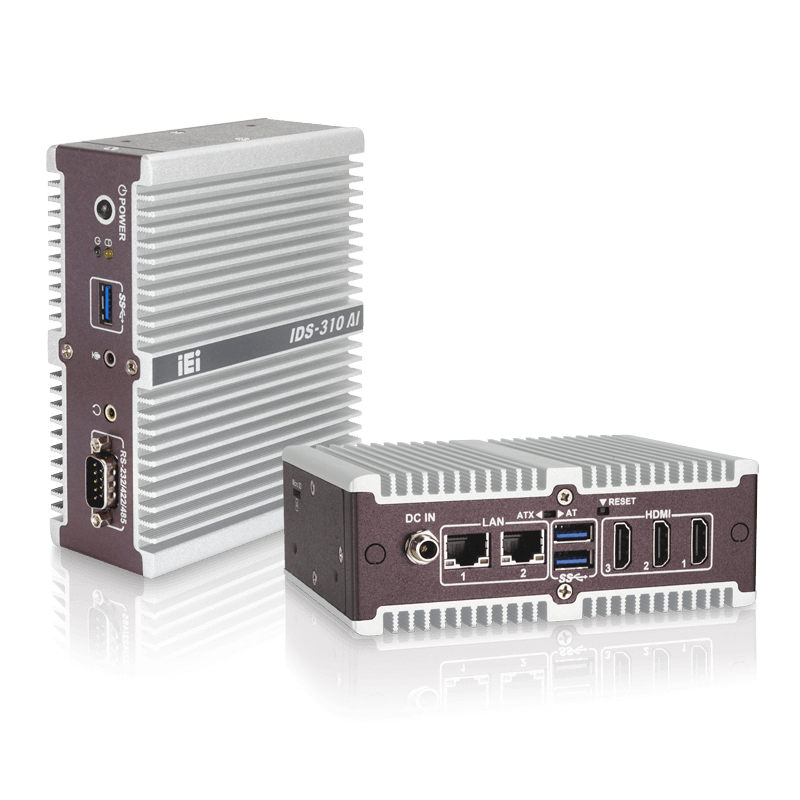

IDS-310AI

Fanless Ultra Compact Size AI Digital Signage System

End of Life

IDS-310-AI Compact Size AI Embedded System
IDS-310-AI Compact Size AI Embedded System
IDS-310-AI Compact Size AI Embedded System
IDS-310-AI Compact Size AI Embedded System
IDS-310-AI Compact Size AI Embedded System
IDS-310-AI Compact Size AI Embedded System
  • IDS-310-AI Compact Size AI Embedded System
  • IDS-310-AI Compact Size AI Embedded System
  • IDS-310-AI Compact Size AI Embedded System
  • IDS-310-AI Compact Size AI Embedded System
  • IDS-310-AI Compact Size AI Embedded System
  • IDS-310-AI Compact Size AI Embedded System

End of Life Notice

* Effective Date: 2021/09/10

» Intel® Celeron® J3455 1.5GHz (up to 2.3GHz, quad-core, TDP 10W)
» Two GbE LAN ports
» Triple USB 3.2 Gen1
» M.2 A-key slot for expansion
» Pre-installed a Mustang-MPCIE-MX2 that has two Intel Myriad X VPUs for AI deep learning workload consolidation

Specifications

Hardware Spec.

Form factor
SBC Form Factor
  • CPU:
    Intel® Celeron® J3455 1.5GHz
    (up to 2.3GHz, quad-core, TDP 10W)
  • Chipset:
    SoC
  • System Memory:
    1 x 204-pin DDR3L SO-DIMM, 8 GB pre-installed
  • Power:
    DC Jack: 12V DC
    Consumption:
    12V @ 2.6A (Intel® Celeron® J3455 with 8GB memory)
  • Reliability:
    Operating Shock: Half-sine wave shock 5G, 11ms, 100 shocks per axis,
    IEC68-2-27
    Operating Vibration: MIL-STD-810G 514.6C-1 (SATADOM)
    Safety/EMC: CE/FCC

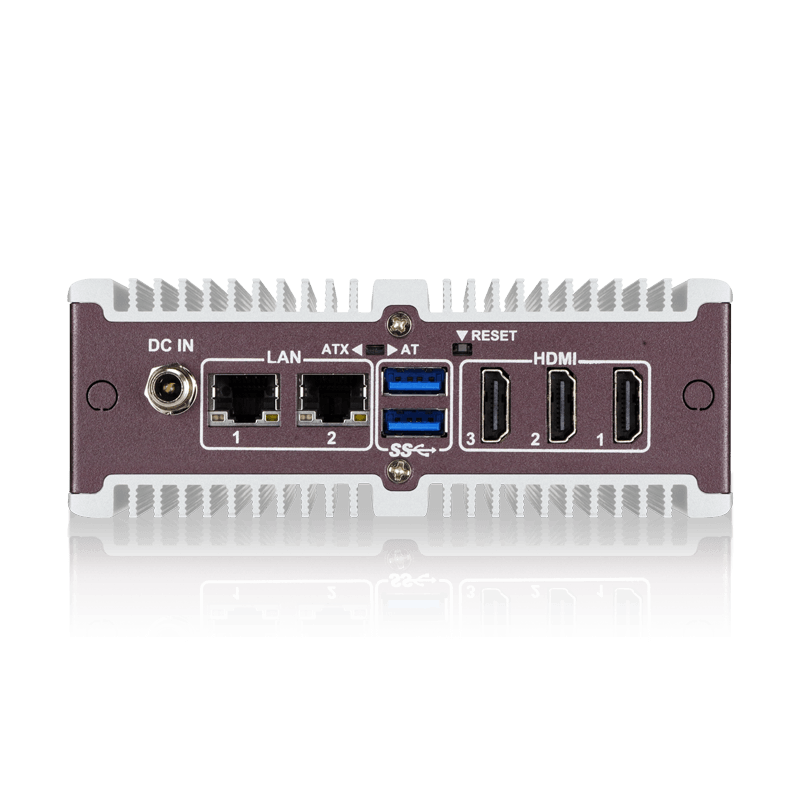

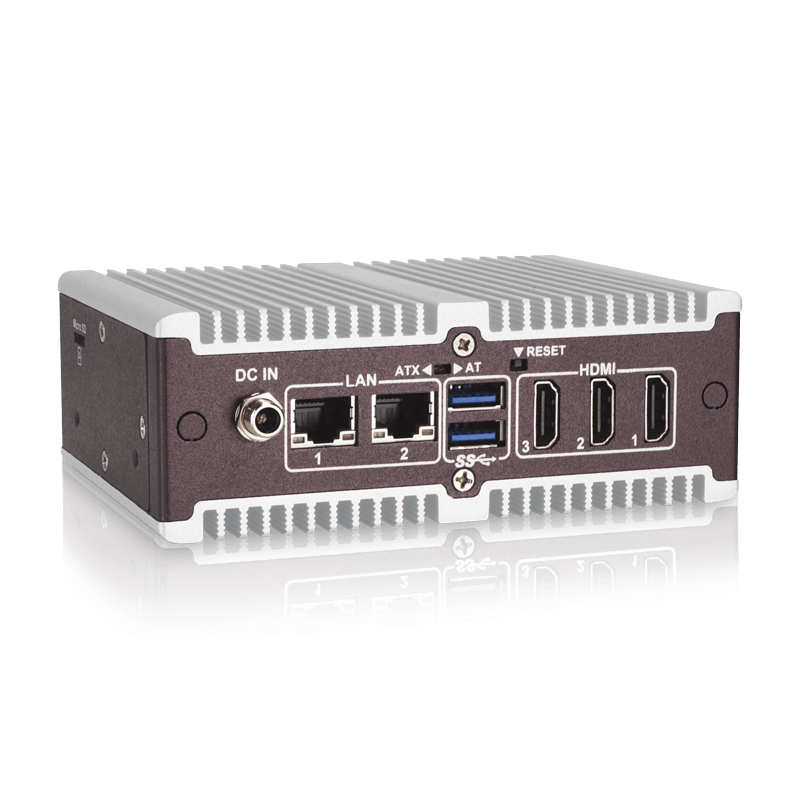

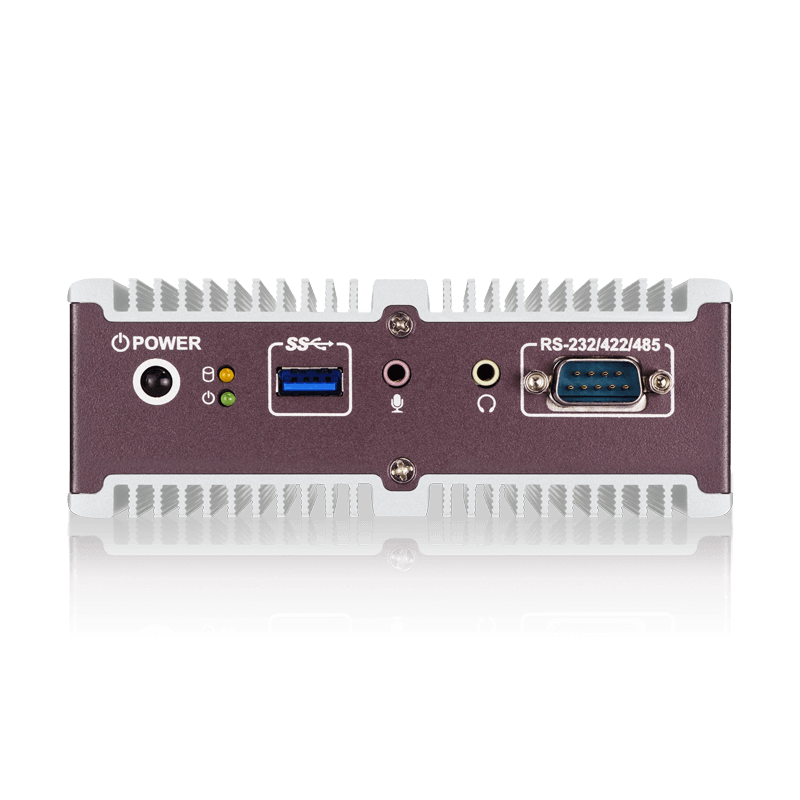

I/O Interface
I/O Ports
  • USB:
    3 x USB 3.2 Gen1
  • Ethernet:
    2 x RJ-45 PCIe GbE by RTL8111H controller
  • COM Port:
    1 x RS-232/422/485 with AFC (DB-9)
  • Display:
    3 x HDMI™ (up to 3840x2160@30Hz)
  • Audio:
    1 x Mic in, 1 x Line out
  • TPM:
    1 x TPM2.0
Expansion Slots
Expansion Slots
  • M.2:
    1 x 2230 A key (PCIex1/USB 2.0)
  • PCIe Mini:
    Pre-installed Mustang-MPCIE-MX2
System
Cooling method / System Fan Fanless
Drive Bays SATADOM: Pre-installed 128GB

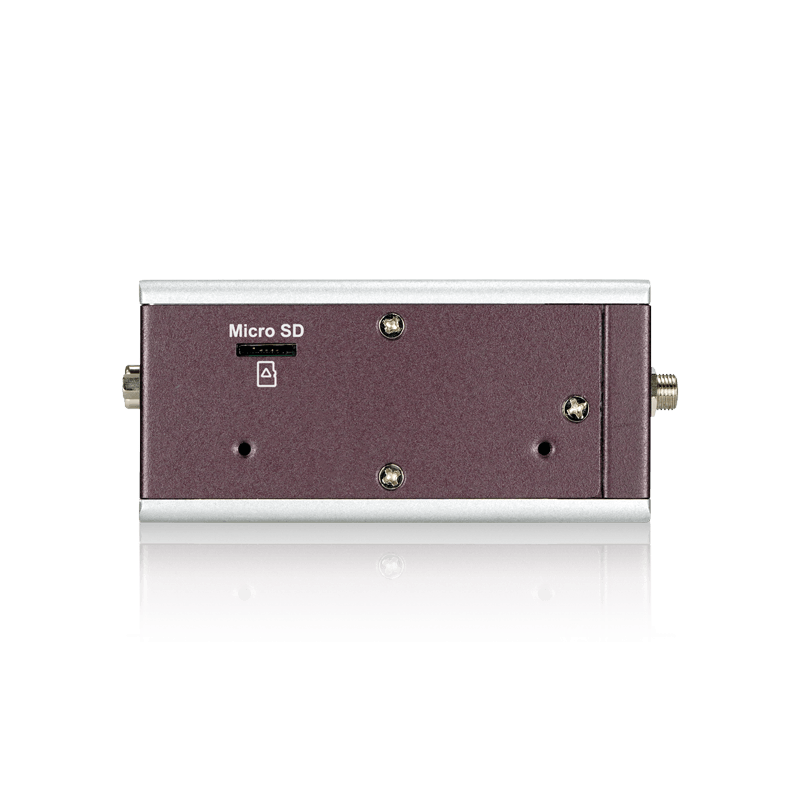

Micro SD: 1 x Micro SD Slot
Indicator&Buttons
Buttons 1 x Power Button
1 x Reset Button
1 x AT/ATX Switch
Indicators HDD
Power
Physical Characteristics
Construction Extruded aluminum alloy
Color
Color Brown & Silver
Dimensions
Dimensions 137 x 102.8 x 49.2 mm
Weight
Weight 910g/1.7kg
Environment
Operating Temperature -20°C ~ 45°C with air flow (SATADOM)
Humidity 10% ~ 95%, non-condensing

Ordering Information

IDS-310AI-AL-J1/8GB-R10 Fanless embedded system with Intel® Celeron® J3455 1.5GHz (up to 2.3GHz, quad dore, TDP 10W), pre-installed 8GB DDR3L memory, triple HDMI™ display, 12V DC, 128G SATADOM, Mustang-MPCIE-MX2 and RoHS

Package Contents

Package Content

  • 1 x 36w Power Adapter

  • 1 x Power Cord

  • 1 x Wall mounting kit

  • 1 x Screw kit
