PulM-100G2SF

Intel® Ethernet Controller EZE810CAM2 based Network Interface Card with 2 x QSFP28 by 1 PCIe 4.0 x8 interface

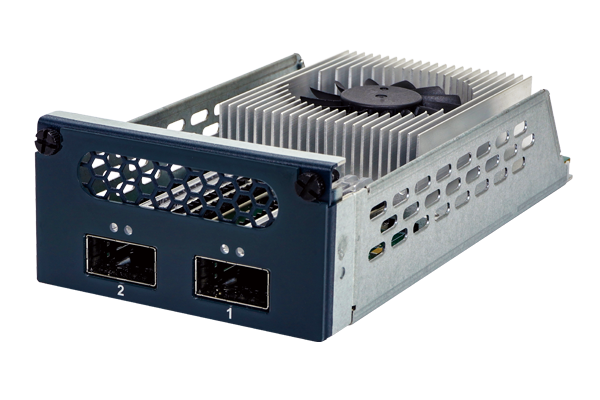

PulM-100G2SF-E810 100GbE Network Module
PulM-100G2SF-E810 100GbE Network Module
  • PulM-100G2SF-E810 100GbE Network Module
  • PulM-100G2SF-E810 100GbE Network Module
• 1 x Intel E810 Ethernet controller
• 2 ports 100GbE QSFP28 connector
• 1 x PCIe 4.0 x8
• RoHS/CE/FCC compliant

Specifications

Hardware Spec.

System
CPU Intel® Ethernet Controller E810
Cooling method / System Fan Active Fan
Physical Characteristics
Dimensions (LxWxH) (mm) 165.50 (L) x 77.8 (W) x 44.2 (H)
I/O Interface
Ethernet 2 x LAN: 2 x QSFP28
Environment
Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature -20°C ~ 75°C (-4°F ~ 167°F)
Humidity 5% ~ 90% RH, Non-condensing
Certifications
Safety & EMC RoHS
Card Slot Interface
PCIe 1 x PCIe Gen4 x8
Card Features
Speed 100 GbE
Controller Chip Intel® Ethernet Controller EZE810CAM2

Ordering Information

PulM-100G2SF-E810-R10 Intel® Ethernet Controller EZE810CAM2 based Network Interface Card with 2 x QSFP28 by 1 PCIe 4.0 x8 interface

Package Contents

Package Content

  • 1 x PulM-100G2SF-E810 card

  • 1 x QIG
