End of Life Notice
* Effective Date: 2021/11/30
» Intel® 22nm Atom™ on-board SoC supported
» Type 10 connector pinout according to COM.0 R2.1
» Supports 2 GB 1066/1333 MHz DDR3L memory
» Optional soldered down 4 GB SSD
» IEI One Key Recovery solution allows you to create rapid OS backup and recovery
» Support wide range operating temperature: -40°C to +85°C
Hardware Spec.
| Physical Characteristics | |
|---|---|
| Dimensions (LxWxH) (mm) | 243.8 X 243.8 |
| Net Weight | 350g |
| Storage | |
| Storage | 2 x SATA |
| 1 x SD/MicroSD card | |
| I/O Interface | |
| Display Output | 1 x VGA |
| 1 x Display Port | |
| 1 x eDP | |
| Ethernet | 1 x LAN |
| Audio | Description: Realtek ALC662 HD Audio codec |
| 1 x Line in | |
| 1 x Line out | |
| 1 x Mic | |
| 1 x Front Audio :2x5 pin | |
| I/O Interface | 6 x External USB 2.0 |
| 2 x External USB 3.2 Gen1x1 | |
| Expansion | 4 x PCIe x1 |
| Other Features | |
| TPM | 2x10 pin |
| Environment | |
| Operating Temperature | -20°C ~ 60°C |
| Storage Temperature | -30°C ~ 70°C |
| Certifications | |
| Safety & EMC | CE/FCC compliant |
Ordering Information

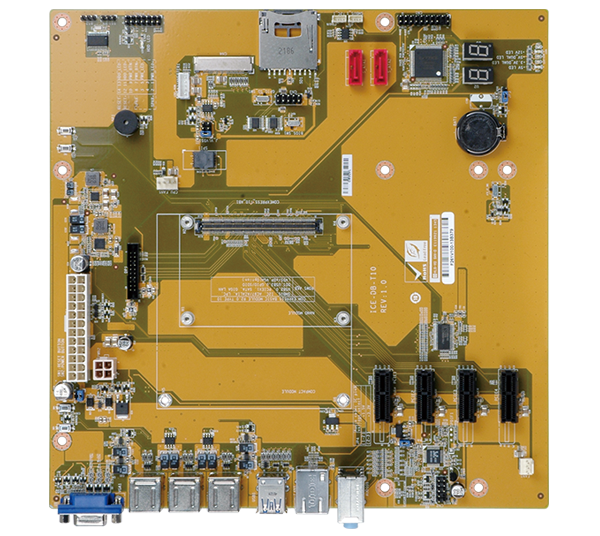

| ICE-DB-T10-R10 | Base Board for COM Express Type 10 Module support PICMG COM.0 R2.1 |
|---|
