End of Life Notice
* Effective Date: 2025/04/03
» Intel® 22nm Atom™ or Celeron® on-board SoC supported
» Intel® HD Graphics Gen7 integrates high-performance graphics and media processing
» Supports 1333/1066 MHz DDR3L (1.35V) memory, up to 8 GB
» Supports one analog CRT, one 24-bit dual-channel LVDS, and one DDI
» Optional soldered down 4 GB SSD
» IEI One Key Recovery solution allows you to create rapid OS backup and recovery
Hardware Spec.
| Storage | |
|---|---|
| Storage | 4 x SATA |
| 1 x SD/MicroSD card | |
| I/O Interface | |
| Display Output | 1 x VGA |
| 2 x Display Port | |
| 1 x LVDS :18/24-bit single or dual-channel (with PWM back light controller) | |
| 1 x iDP | |
| Audio | Description: Realtek ALC662 HD Audio codec |
| 1 x Line in :on rear IO | |
| 1 x Line out :on rear IO | |
| 1 x Mic :on rear IO | |
| 1 x Front Audio :2x5 pin | |
| I/O Interface | 1 x PS/2 |
| Expansion | 1 x PCIe x16 |
| 1 x PCIe x4 | |
| 5 x PCIe x1 | |
| 2 x PCIe mini Card Slot :with mSATA support,colay with SATA 4 | |
| Other Features | |
| TPM | 2x10 pin |
Ordering Information

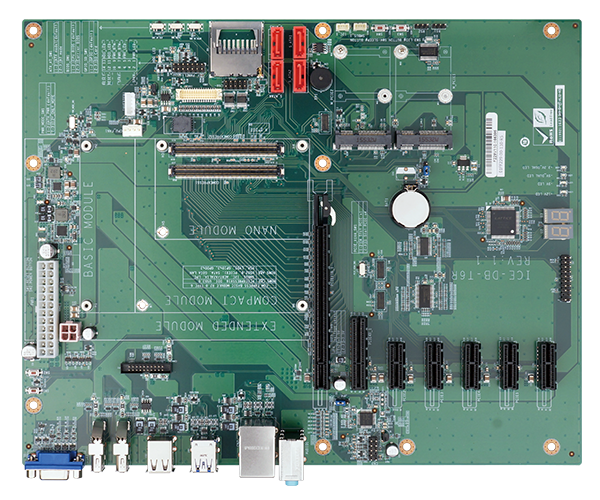

| ICE-DB-T6R-R10 | Base Board for COM Express Type 6 Module COM.0 Rev. 2.1,support PICMG EAPI R1.0 |
|---|
