End of Life Notice
* Effective Date: 2024/09/03

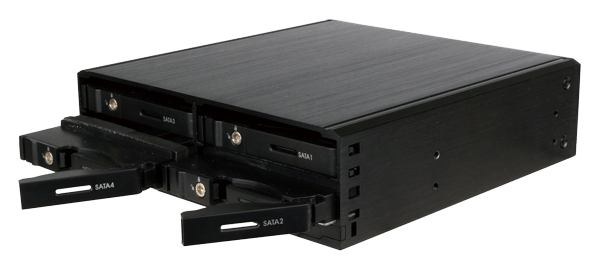

• Fits into a 5.25＂ bay
• Connector:
front side:
4 x 2.5＂ SATA HDD / SSD bay
back side:
4 x SATA 7 pin female
1 x 4 pin power connector
• Suitable for 2.5＂ SATA HDD / SSD:
HDD height up to 12.5 mm
SATA HDD / SSD up to 6 Gb/s
supports 5 V HDD / SSD
• Data transfer rate up to 6 Gb/s
• Mobile rack with key lock for each bay
• 4 x LED indicator for power and access
• Hot Swap
• OS independent, no driver installation necessary
Hardware Spec.
| General | |
|---|---|
| Dimensions | 149.6 x 146 x 42.1 (L x W x H) (mm) |
| Material | |
| Material | Full Metal |
| Weight | |
| Weight | 0.56 kg (Gross) |
| Data Transfer Rate | |
| Data Transfer Rate | SATA III 6Gbps |
| Drive Bay Space | |
| Drive Bay Space | 1 x 5.25＂ Device Bay for 4 x 2.5＂ Hard Drive |
| HDD Type | |
| HDD Type | 2.5＂ Hard Drive |
| Cooloing Fan | |
| Cooloing Fan | 4CM |
| Hot Swap | |
| Hot Swap | Yes |
| Keylock | |
| Keylock | Yes |
| Signal Out | |
| Signal Out | SATA III 7-Pin |
| Color | |
| Color | Black |
| Interface | |
| Interface | SATA III |
Ordering Information
| RHD-104SATA-R20 | DRIVER CAGE;2,5'' SATA HDD, 7PIN SATA CONNECTOR*4;R20 |
|---|
