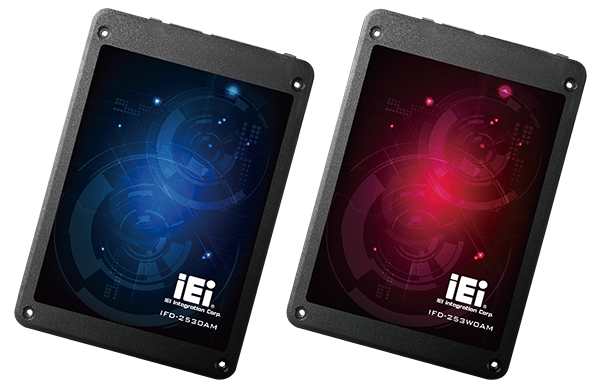

IFD-2530AM

Solid-State Drive-2.5” SATA 6Gb/s MLC

End of Life

End of Life Notice

* Effective Date: 2024/09/03

Solid-State Drive-2.5” SATA 6Gb/s MLC

Specifications

Hardware Spec.

ATA Security
ATA Security Yes
Capacity (GB)
Capacity (GB) 16GB~256GB
Dimensions
Dimensions 69.8 x 100.1 x 7.0
Flash Type
Flash Type MLC
Interface
Interface SATA 6Gb/s
Key Features
Key Features 1. 7mm height mechanical design
2. Low power consumption
3. Budget-friendly MLC-based solution
Max. Power Consumpation
ConsumpationMax. Power Consumpation 1.7W (5V x 335 mA)
P/N
STD(0°C~+70°C) IFD-2530AM-16GB-R10
IFD-2530AM-32GB-R10
IFD-2530AM-64GB-R10
IFD-2530AM-128GB-R10
IFD-2530AM-256GB-R10
WT(-40°C~+85°C) IFD-2530AWM-16GB-R10
IFD-2530AWM-32GB-R10
IFD-2530AWM-64GB-R10
IFD-2530AWM-128GB-R10
IFD-2530AWM-256GB-R10
S.M.A.R.T
S.M.A.R.T Yes
Sequential R/W
Sequential R/W 525/180
Thermal Sensor
Thermal Sensor Wide temperature model only

Ordering Information

IFD-2530AWM-64GB-R10 Flash Disk; 2.5'' SSD SATAIII Interface, MLC, -40℃~85℃, R:515MB/s W:180MB/s, 64GB
IFD-2530AWM-32GB-R10 Flash Disk; 2.5'' SSD SATAIII Interface, MLC, -40℃~85℃, R:515MB/s W:180MB/s, 32GB
IFD-2530AWM-256GB-R10 Flash Disk; 2.5'' SSD SATAIII Interface, MLC, -40℃~85℃, R:520MB/s W:170MB/s, 256GB
IFD-2530AWM-16GB-R10 Flash Disk; 2.5'' SSD SATAIII Interface, MLC, -40℃~85℃, R:315MB/s W:170MB/s, 16GB
IFD-2530AWM-128GB-R10 Flash Disk; 2.5'' SSD SATAIII Interface, MLC, -40℃~85℃, R:525MB/s W:175MB/s, 128GB
IFD-2530AM-64GB-R10 Flash Disk; 2.5'' SSD SATAIII Interface, MLC, 0℃~70℃, R:515MB/s W:180MB/s, 64GB
IFD-2530AM-32GB-R10 Flash Disk; 2.5'' SSD SATAIII Interface, MLC, 0℃~70℃, R:515MB/s W:180MB/s, 32GB
IFD-2530AM-256GB-R10 Flash Disk; 2.5'' SSD SATAIII Interface, MLC, 0℃~70℃, R:520MB/s W:170MB/s, 256GB
IFD-2530AM-16GB-R10 Flash Disk; 2.5'' SSD SATAIII Interface, MLC, 0℃~70℃, R:315MB/s W:170MB/s, 16GB
IFD-2530AM-128GB-R10 Flash Disk; 2.5'' SSD SATAIII Interface, MLC, 0℃~70℃, R:525MB/s W:175MB/s, 128GB

Download Specs.
