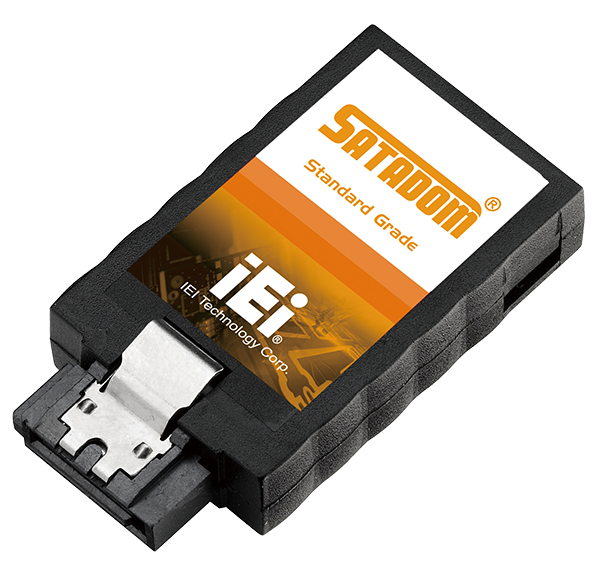

IFM-3010V

Industrial Flash Module Series(SATADOM)SLC

End of Life

End of Life Notice

* Effective Date: 2025/09/12

Industrial Flash Module Series(SATADOM)SLC

Specifications

Hardware Spec.

ATA Security
ATA Security Yes
Capacity (GB)
Capacity (GB) 1GB~32GB
Dimensions
Dimensions 20.9 x 39.5 x 7.9
Flash Type
Flash Type SLC
Interface
Interface SATA 6Gb/s
Key Features
Key Features 1. Vertical version
2. Anti-vibration mechanical design
Max. Power Consumpation
ConsumpationMax. Power Consumpation 0.65W (5V x 130mA)
P/N
STD(0°C~+70°C) IFM-3010IS-1GB
IFM-3010IS-2GB
IFM-3010IS-4GB
IFM-3010IS-8GB
IFM-3010IS-16GB
IFM-3010IS-32GB
WT(-40°C~+85°C) IFM-3010WS-1GB
IFM-3010WS-2GB
IFM-3010WS-4GB
IFM-3010WS-8GB
IFM-3010WS-16GB
IFM-3010WS-32GB
S.M.A.R.T
S.M.A.R.T Yes
Sequential R/W
Sequential R/W 300/130
Thermal Sensor
Thermal Sensor Wide temperature model only

Ordering Information

IFM-3010WS-8GB Flash Disk;SATA Interface Disk on Module,High Speed, SLC, -40℃~85℃, R:300MB/s W:130MB/s, 8GB
IFM-3010WS-4GB Flash Disk;SATA Interface Disk on Module,High Speed, SLC, -40℃~85℃, R:300MB/s W:130MB/s, 4GB
IFM-3010WS-32GB Flash Disk;SATA Interface Disk on Module,High Speed, SLC, -40℃~85℃, R:300MB/s W:130MB/s, 32GB
IFM-3010WS-2GB Flash Disk;SATA Interface Disk on Module,High Speed, SLC, -40℃~85℃, R:300MB/s W:130MB/s, 2GB
IFM-3010WS-1GB Flash Disk;SATA Interface Disk on Module,High Speed, SLC, -40℃~85℃, R:300MB/s W:130MB/s, 1GB
IFM-3010WS-16GB Flash Disk;SATA Interface Disk on Module,High Speed, SLC, -40℃~85℃, R:300MB/s W:130MB/s, 16GB
IFM-3010IS-8GB Flash Disk;SATA Interface Disk on Module,High Speed, SLC, 0℃~70℃, R:300MB/s W:130MB/s, 8GB
IFM-3010IS-4GB Flash Disk;SATA Interface Disk on Module,High Speed, SLC, 0℃~70℃, R:300MB/s W:130MB/s, 4GB
IFM-3010IS-32GB Flash Disk;SATA Interface Disk on Module,High Speed, SLC, 0℃~70℃, R:300MB/s W:130MB/s, 32GB
IFM-3010IS-2GB Flash Disk;SATA Interface Disk on Module,High Speed, SLC, 0℃~70℃, R:300MB/s W:130MB/s, 2GB
IFM-3010IS-1GB Flash Disk;SATA Interface Disk on Module,High Speed, SLC, 0℃~70℃, R:300MB/s W:130MB/s, 1GB
IFM-3010IS-16GB Flash Disk;SATA Interface Disk on Module,High Speed, SLC, 0℃~70℃, R:300MB/s W:130MB/s, 16GB

Download Specs.
