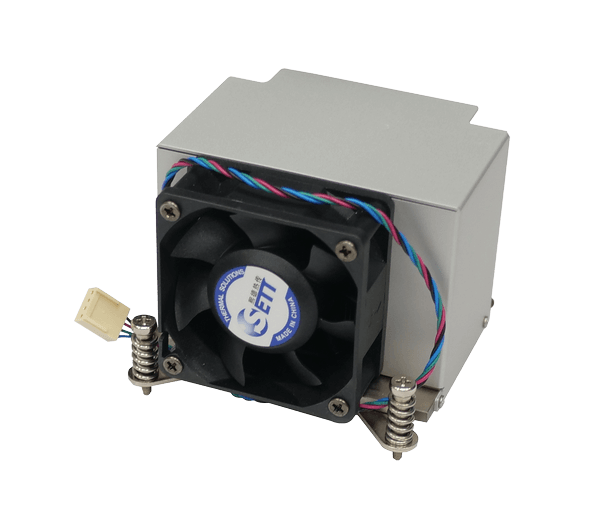

High performance thermal solutions
Hardware Spec.
| CPU Solution | |
|---|---|
| CPU Solution | Intel® Core™ i9/ i7/ i5/ i3 |
| Socket Solution | |
| Socket Solution | LGA1700 |
| Dimensions | |
| Dimensions | 87.8 x 66.5 x 75 mm |
| Material | |
| Material | Cu-Al |
| Bearing Type | |
| Bearing Type | Two-Ball |
| Capability (Watt) | |
| Capability (Watt) | 125W |
| Fan Speed (RPM) | |
| Fan Speed (RPM) | 9000 |
| Noise Level (dBA) | |
| Noise Level (dBA) | 54 |
| Life Expectancy (hrs) | |
| Life Expectancy (hrs) | 50000 |
| Weight | |
| Weight | 411g |
| Key Features | |
| Key Features | LGA1700 CPU cooler, RoHS |
Ordering Information
| 19100-000326-00-RS | B646;COOLER MODULE/Heat Pipe;HEATSINK:87.8*66.5*75mm,FAN:60*60*25mm;LGA1700,125W;STANDARD;00;HF-SETT-5Q962-1700;CU&AL BASE+HEAT PIPE+AL FIN+GREASE;DC FAN:12V,9000RPM,2510-4P,L=270mm;Geatsink;TD6025B12HA;CCL;RoHS |
|---|
