» 英特尔® Elkhart Lake 平台
» 双M.2 (M.2 B Key & M.2 M Key) 支持
» 具备防眩光和防紫外的电容触控屏
» 支持手套和湿水下进行操作
» 全新设计的手拧面板安装套件
Hardware Spec.
| System | |
|---|---|
| Cooling method / System Fan | 无风扇 |
| CPU | Intel® Celeron® Processor J6412 1.5M Cache, up to 2.60 GHz / TDP 10w |
| 内存 | 双通道板载8GB LPDDR4x |
| 存储 | 1 x M.2 2242 M-key (PCIe Gen3 x2) |
| I/O Interface | |
| 网络 | 2个2.5GbE LAN，通过 Intel® I225V |
| 扩展 | 1 x M.2 2242/2280 B key (PCIe Gen3 x1 + USB 3.0) |
| Power | |
| Power adapter | 60W电源适配器 |
| Environment | |
| 工作温度 | -10°C ~ 60°C |
| Operating Vibration | MIL-STD-810G 514.6C-1 (with SSD) |
| Operating Shock | Half-sine wave shock 5G; 11ms; 100 shocks per axis |
| 安规&电磁 | CE, FCC Class A |
| 相对湿度 | 10% ~ 95%@40°C, 无冷凝 |
| 存储温度 | -20°C ~ 60°C |
| IP Level | 前面板符合 IP 65 标准 |
| Physical Characteristics | |
| 机身颜色 | 黑色 |
| 安装方式 |
VESA 75/100 Panel, Wall, Rack, Stand and Arm |
| LCD | |
| LCD 尺寸 | 12.3” |
| 分辨率 | 1920 x 720 |
| 亮度 | 850 |
| 对比度 | 1000:1 |
| LCD 色彩 | 16.7M |
| 像素间距 (mm) | 0.152 x 0.152 |
| 可视角度 (H-V) | 160°/170° |
| 背光 MTBF | 50,000小时 |
| Touch | |
| 触摸屏 |
多点电容式触控屏(抗紫外/防眩光,支持手套) 表面硬度: ≧7H |
| 触控IC | EETI 8X |
| I/O Interface | |
| I/O 接口 | 1 x RS-232/422/485 (by DB9) |
| 2 x USB 2.0 | |
| 1 x HDMI™ | |
| 2 x LAN | |
| 1 x Reset Button | |
| 1 x Power Switch | |
| 1 x AT/ATX switch | |
| 1 x Clear CMOS Button | |
| 1 x RS-232 (by DB9) | |
|
2 x Power In - 1 x 12V-24V power jack 1 x Power terminal block (2-pin) |
|
| 2 x USB 3.2 Gen2x1 (10Gb/s(Type A)) | |
Ordering Information

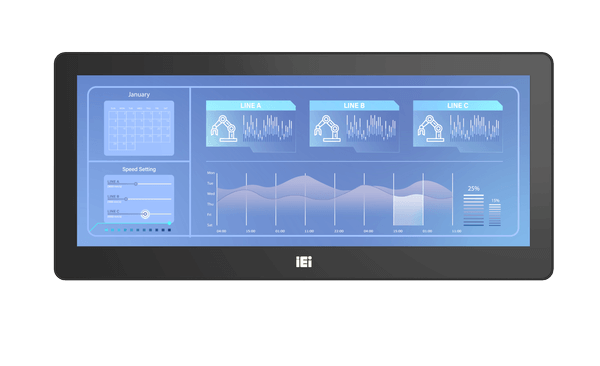

| PPC2-CW123-EHL-J1/8G-R10 | 12.3” 850 cd/cm² 1920x720 Fanless Panel PC with Intel® Celeron® Processor J6412, TDP 10W, 8GB LPDDR4x on-board, HDMI™ output, black, 12-24V DC input, projected capacitive touchscreen with AG, R10 |
|---|
Package Contents
| Package Content |
|
|---|
