TANGO-7010

紧凑尺寸

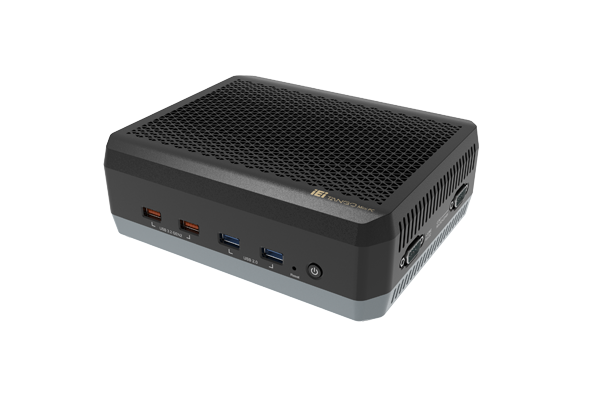

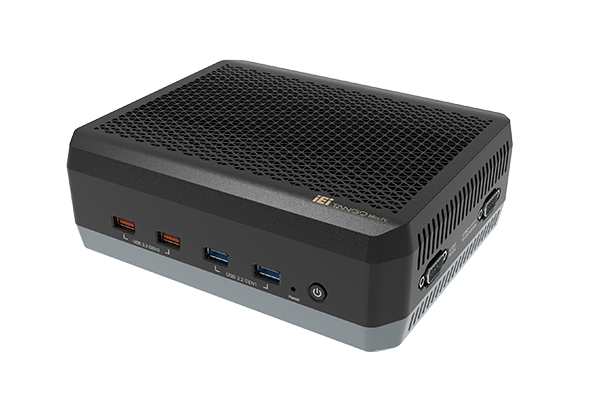

TANGO-7010_Front right side
TANGO-7010 Left Side
TANGO-7010 Left Side

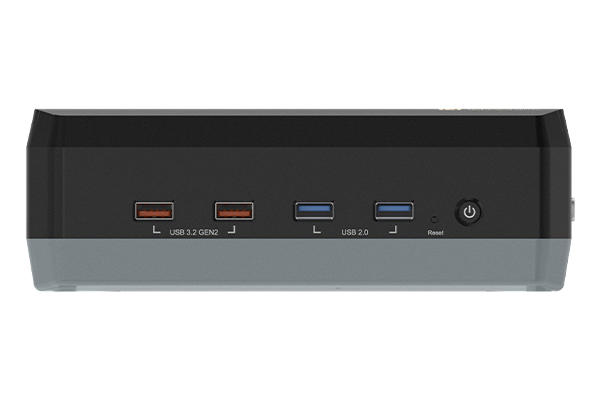

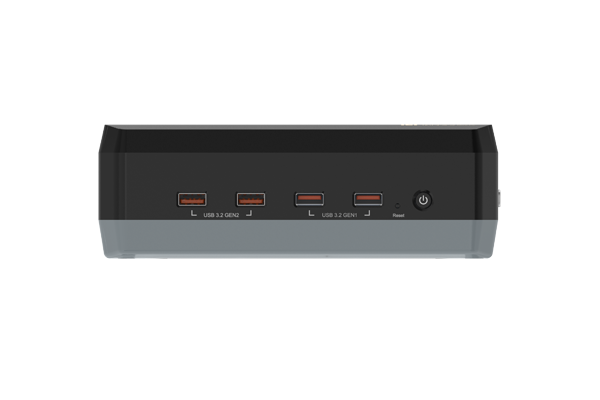

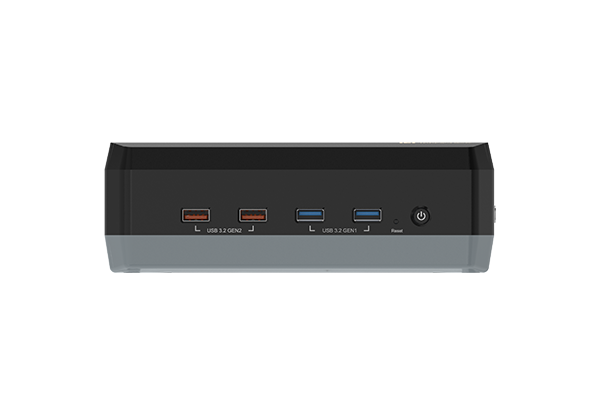

TANGO-7010_Front IO
TANGO-7010 Front IO
TANGO-7010 Front IO

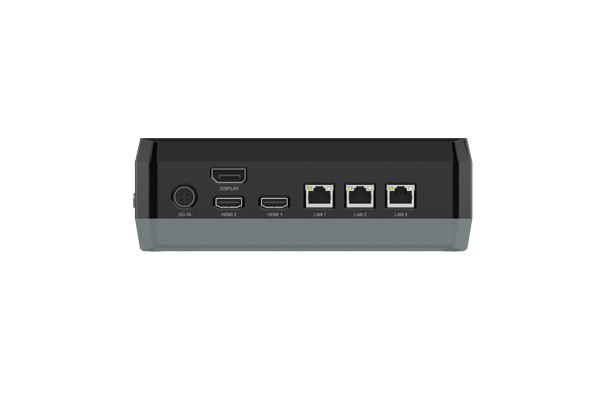

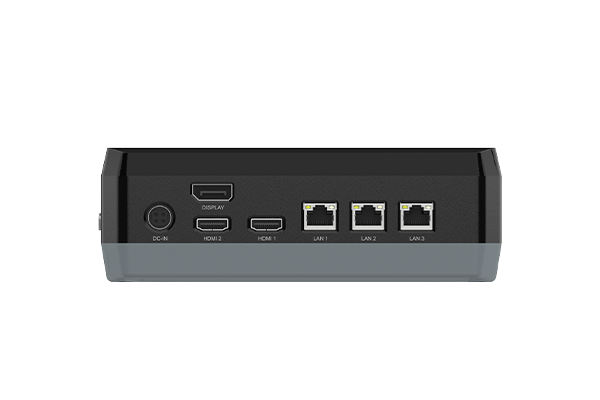

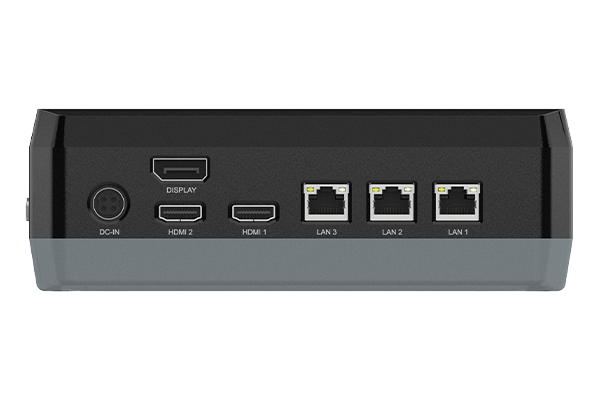

TANGO-7010 Back IO
TANGO-7010 Back IO
TANGO-7010 Back IO

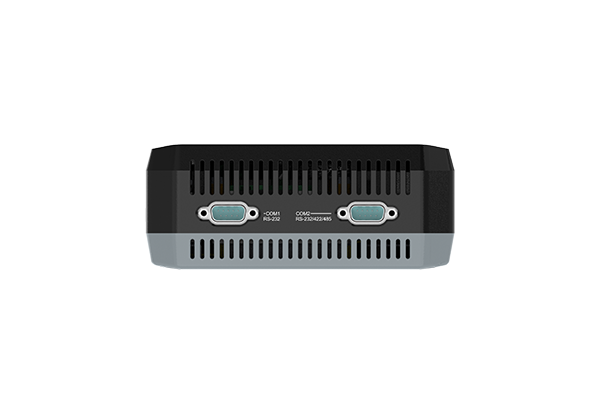

TANGO-7010 Side IO
  • TANGO-7010_Front right side
  • TANGO-7010 Left Side
  • TANGO-7010 Left Side
  • TANGO-7010_Front IO
  • TANGO-7010 Front IO
  • TANGO-7010 Front IO
  • TANGO-7010 Back IO
  • TANGO-7010 Back IO
  • TANGO-7010 Back IO
  • TANGO-7010 Side IO
» 紧凑型工业迷你电脑
» 智能风扇系统
» 12代 Intel® Core™ i 系列处理器
» 三个 2.5GbE 网口
» 内置 Wi-Fi 6E & 蓝牙 5.2 模组(内部天线）

Specifications

Hardware Spec.

Form factor
SBC Form Factor
  • CPU: 12th Intel ® Core™ i Processors
  • 芯片组: H610
  • 系统内存: 2 x SODIMM 3200MHz DDR4, 预装8G(内存上限64G)
  • 电源: 直流插孔: 12V 直流
  • 功耗: 12V@2.95A (Intel ® Core™ i7-12700TE 带8GB内存)
I/O Interface
I/O Ports
  • USB:
    2 x USB3.2 Gen2
    2 x USB3.2 Gen1
  • 网络:
    3 x RJ-45 2.5 GbE by I226V controller
  • 显示:
    2 x HDMI™ 2.0B Support CEC (up to 4k@ 60Hz)
    1 x DP 1.4 (up to 4k@ 60Hz)
  • 串口:
    1x RS-232 (DB9)
    1x RS-232/422/485 (DB9)
  • TPM:
    支持Intel PTT
  • 无线/蓝牙:
    INTEL AX210 WiFi 6E &蓝牙5.2模块带 2T2R天线
  • 看门狗定时器:
    可编程1 ~ 255 秒/分钟
Expansion Slots
Expansion Slots
  • M.2:
    1 x 2230 E-key (PCIex1/USB2.0) (预装无线模块)
    1 x 2280 M-key (PCIe Gen4 x4)
    1 x 2280 M-key (PCIe Gen3 x4)
System
Cooling method / System Fan 智能风扇
Drive Bays 1 x 2.5” SATA 6Gb/s HDD/SSD bay
(最大支持到9毫米厚度硬盘)
Indicator&Buttons
Buttons 1 x 电源开关(带灯)
1 x 复位开关
Indicators 1 x 电源灯



Physical Characteristics
Construction ABS 塑胶+ 铝合金
Color
Color 黑&灰（Pantone 430C）
Dimensions
Dimensions 192.09 x 158 x 64 (mm)
Weight
Weight 1.29 / 2.34kg
Environment
工作温度 0°C ~ 40°C 带0.7M/S 风流 (SSD)
相对湿度 10% ~ 95% 无冷凝
Operating Vibration 10-500 Hz, 1.04 Grms, random, 1 hr/axis (SSD)
Operating Shock Half-sine wave shock 5G, 11ms, 100 shocks per axis (SSD)
安规&电磁 符合CE/RED/FCC/UKCA 认证
OS Compatible
OS Compatible Microsoft® Windows® 10/11, Linux

Ordering Information

TANGO-7010-i9AWC-R11 Fan System with Intel® Core™ i9-12900TE 1.1 GHz (up to 4.8 GHz, 16-core, TDP 35W), 1 x 8GB DDR4 pre-installed, 3 x 2.5GbE LAN, 2 x HDMI, 1 x DP, 4 x USB, 12V DC, Wifi-6E, RoHS
TANGO-7010-i7AWC-R10 Fan System with Intel® Core™ i7-12700TE 1.4 GHz (up to 4.6 GHz, 12-core, TDP 35W), 1 x 8GB DDR4 pre-installed, 3 x 2.5GbE LAN, 2 x HDMI, 1 x DP, 4 x USB, 12V DC, Wifi-6E, RoHS
TANGO-7010-i5AWC-R10 Fan System with Intel® Core™ i5-12500TE 1.9 GHz (up to 4.3 GHz, 6-core, TDP 35W), 1 x 8GB DDR4 pre-installed, 3 x 2.5GbE LAN, 2 x HDMI, 1 x DP, 4 x USB, 12V DC, Wifi-6E, RoHS
TANGO-7010-i3AWC-R10 Fan System with Intel® Core™ i3-12100TE 2.1 GHz (up to 4 GHz, quad core, TDP 35W), 1 x 8GB DDR4 pre-installed, 3 x 2.5GbE LAN, 2 x HDMI, 1 x DP, 4 x USB, 12V DC, Wifi-6E, RoHS
TANGO-7010-W10IoT21-V-R10
[Peripheral]		 OS Image with Windows® 10 Enterprise Value 64-bit 2021 LTSC for TANGO-7010 i3 & i5 Series, with DVD-ROM, RoHS
TANGO-7010-W10IoT21-H-R10
[Peripheral]		 OS Image with Windows® 10 Enterprise High End 64-bit 2021 LTSC for TANGO-7010 i7 & i9 Series, with DVD-ROM, RoHS

Package Contents

  • 1 x 安装螺丝
  • 1 x VESA 安装套件
  • 1 x 适配器
  • 1 x 电源线
