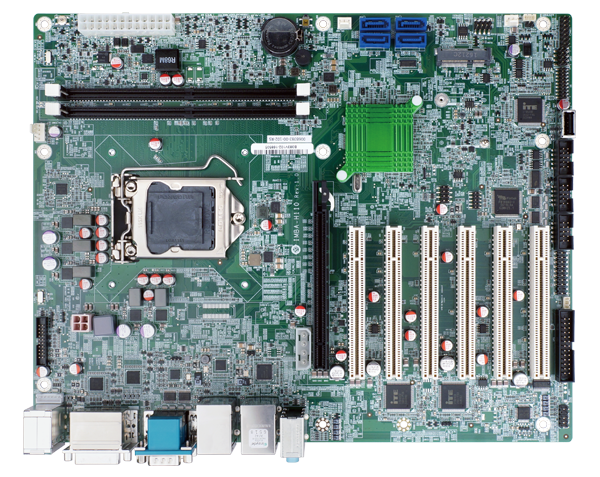

IMBA-H110
ATX motherboard supports 14nm LGA1151 6th Generation Intel® Core™ i7/i5/i3,
» LGA 1151 Intel® 6th/7th generation Core™ i7/i5/i3, Pentium® or Celeron® processor supported
» Dual-channel DDR4 2133 MHz
» Support dual displays with DVI-I/HDMI™+DP/iDP
» Support USB 3.0 and SATA 6Gb/s
» IEI One Key Recovery solution allows you to create rapid OS backup and recovery
Hardware Spec.
| System | |
|---|---|
| CPU | LGA 1151 socket supports Intel® 6th/7th generation Core™ i7/i5/i3, Pentium® or Celeron® processor |
| Chipset | Intel® H110 |
| Memory | Two 288-pin 2133 MHz dual-channel DDR4 SDRAM unbuffered DIMMs |
| Memory Max. | 64GB |
| Physical Characteristics | |
| Dimensions (LxWxH) (mm) | 244 X 305 |
| Net Weight | 700g |
| Storage | |
| Storage | 4 x SATA :6Gb/s |
| I/O Interface | |
| Display Output | 1 x DVI-I :up to 1920x1200@60Hz |
| 1 x HDMI™ :1.4 (up to 4096x2160@24Hz) | |
| 1 x iDP :interface for HDMI™, LVDS, VGA, DVI, DP (up to 3840x2160@60Hz) | |
| Ethernet |
2 x LAN :LAN1: Intel® I219LM PCIe controller LAN2: Intel® I211 PCIe controller |
| Audio | Description: Realtek ALC662 HD codec supports 5.1-channel |
| Line in :on rear IO | |
| Line out :on rear IO | |
| Mic :on rear IO | |
| Front Audio | |
| I/O Interface | 2 x External RS-232 |
| 2 x Internal RS-232 :2x5 pin, p=2.54 | |
| 1 x Internal RS-232/422/485 :2x5 pin, p=2.54 | |
| 2 x External USB 2.0 | |
| 4 x External USB 3.2 Gen1x1 | |
| 3 x Internal USB 2.0 :1 X A type, 2 X 2x4 pin, p=2.54 | |
| 1 x PS/2 :1x6 pin | |
| 1 x DIO :8-bit digital I/O (2x5 pin) | |
| 1 x LPT :2x13 pin, p=2.54 | |
| Expansion | 1 x PCIe x16 :Gen3 |
| 6 x PCI Slot | |
| 1 x PCIe mini Card Slot :Full-size slot (support mSATA) | |
| Other Features | |
| TPM | 2x10 pin |
| Power | |
| Power Consumption |
3.3V@1.53A, 5V@2.95A, 12V@8.38A, 5VSB@3.2A (Intel® Core™ i7 6700K 4.0GHz CPU with 16GB (two 8GB) 2133 MHz DDR4 memory) |
| Environment | |
| Operating Temperature | -20°C ~ 60°C |
| Storage Temperature | -30°C ~ 70°C |
| Humidity | 5% ~ 95%, non-condensing |
| Certifications | |
| Safety & EMC | CE/FCC compliant |
Ordering Information
| IMBA-H110-R10 | ATX Motherboard supports 14nm LGA1151 6th Generation Intel® Core i7/i5/i3, Celeron® and Pemtium® processor , DDR4, Dual Independent Displays DVI-I/HDMI™/iDP, Dual®Intel GbE LAN, USB 3.0, SATA 6Gb/s, HD Audio and RoHS |
|---|
