End of Life Notice
* Effective Date: 2019/11/06
» IEI Vision SDK available
» Compact and lightweight industrial camera with Aptina global shutter CMOS sensor
» Compatible with USB 3.0 SuperSpeed specification
» Resolutions up to 752x480
» Frame rates up to 60 FPS
» Support AMCap and other DirectShow compatible software
» Other commercial vision software supported through DirecShow, ex: Halcon
» IEI Similarity technology can provide image enhancement
Hardware Spec.

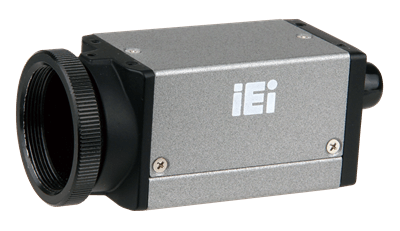

| Appearance | |
|---|---|
| Dimension | 58.9 mm x 29 mm x 29 mm |
| Environment | |
| Operating Temperature | 0°C ~ 45°C |
| Storage Humidity | 20% ~ 95% |
| Storage Temperature | -30° ~ 60°C |
| Operating Humidity | 20% ~ 80% |
| Others | |
| Power Consumption | < 3.5W |
| Power Requirements | 5V via external connector or USB 3.0 |
| Parameters | |
| ADC | 8-bit/10-bit |
| Pixel Size | 6.0 µm |
| Readout Method | Global shutter |
| Resolution | 752 x 480 |
| Sensor Name | Micron MT9V022 |
| Sensor Type | CMOS |
| Auxiliary Output | 3.3 V, 100 mA max |
| Sensor Size (inch) | 1/3-inch |
| Chroma | Mono |
| Compliance | CE, FCC |
| Frame Rate | 60FPS |
| Interface | USB 3.0 interface |
| Lens Mount | CS-mount |
| Mass | 79g |
| Megapixels | 0.3 MP |
| Software Support | |
| SDK | 1 x Windows |
| OS Support | 1 x Microsoft Windows 7 64-bit |
| Operating System(Support UVC) | |
| 1 x Microsoft Windows 10 64-bit | |
| 1 x Microsoft Windows 8.1 64-bit | |
| 1 x Microsoft Windows 8.1 32-bit | |
| 1 x Microsoft Windows 7 32-bit | |
| 1 x Microsoft Windows 10 32-bit | |
| System Requirement | |
| CPU | Intel® Core™ i5 or above |
| Memory | 2GB or more |
Ordering Information
| HSC-03M2-O-R10 | USB3.0 Monochrome Indutrial camera, 1/3" Aptina(On-semi) CMOS, 752x480 pixel, 60FPS |
|---|
Package Contents
| Package Content |
|
|---|
