PUZZLE-A002

1U 机架安装网络设备，具有 AMD R系列 RX-421ND 处理器, 支持 6 个 GbE RJ45

End of Life

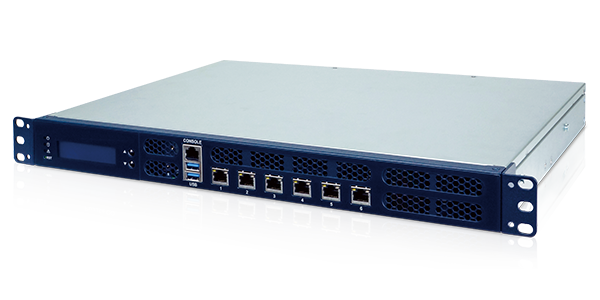

PUZZLE-A002 Network Appliance with AMD CPU
PUZZLE-A002 Network Appliance with AMD CPU
  • PUZZLE-A002 Network Appliance with AMD CPU
  • PUZZLE-A002 Network Appliance with AMD CPU

End of Life Notice

* Effective Date: 2021/08/18

» AMD R-Series RX-421ND quad-core 2.1 GHz processor
» 2 x DDR4 2400MHz ECC/Non-ECC UDIMM, up to 32 GB
» Support 6 x GbE RJ45 via BROADCOM BCM 5720
» 1 x RJ45 Console, 2 x USB 3.1 Gen 1 (5Gb/s), 2 x USB 2.0, LCM
» 2 x 2.5” SATA 3.0  drive bay, 1 x PCIe Mini card (PCIe 2.0, USB 2.0, Micro SIM slot)
» Support two PCIe x4
» Support open source software, such as pfSense® and OPNsense®.

Specifications

Hardware Spec.

系统
CPU AMD R-Series RX-421ND processor, 4C, up to 3.4 GHz
芯片组 Integrated in CPU
内存 2 x DDR4 2400MHz ECC/Non-ECC UDIMM
内存上限 Up to 32GB
散热方案/系统风扇 4 x Cooling Fans with Smart Fan
物理特性
Rack Height 1U
尺寸 (LxWxH) (mm) 320x430x44.2
净重 5kg
存储
存储 2 x 2.5” SSD/HDD Bay support SATA 3.0 (6 Gbps)
1 x eMMC 8 GB
I/O 接口
网络 6 x LAN GbE RJ45 LAN ports (Broadcom BCM5720)
I/O接口 2 x External USB 3.2 Gen1x1
1 x Internal USB 3.2 Gen1x1 USB3.0 TypeA
2 x Internal USB 2.0
扩展 2 x PCIe x4 2 x PCIe 3.0 x4 (FHHL) slots
1 x PCIe mini Card Slot PCIe 2.0, USB 2.0, Micro SIM slot
1 x M.2(NGFF) 2230 M.2 A key (PCIe 2.0/ USB 2.0)
电源
Input 100 V ~ 240 V
电源供电 250W
环境
操作温度 0°C ~ 40°C (32°F ~ 104°F)
存储温度 -20°C ~ 75°C (-4°F ~ 167°F)
Humidity 5% ~ 90% non-condensing
认证
Safety & EMC CE/FCC/RoHS Compliant
OS Compatible
OS Compatible Linux Ubuntu 18.04.04
CentOS 7/Red Hat/Fedora EPEL

Ordering Information

PUZZLE-A002-MF1/8G-R10 1U Rackmount Network Appliance with AMD® RX-421ND procrssor, 8GB DDR4, one 256GB SSD, six 1GbE , two PCIe x4 expansion, RoHS
PUZZLE-A002-MF1-R10 1U Rackmount Network Appliance with AMD® RX-421ND procrssor, two DDR4 slots, and six 1GbE , two PCIe x4 expansion, RoHS

Package Contents

Package Content

  • ．1 x Power cord

  • ．2 x Rack mounting ears

  • ．6 x Screws for rack mounting ears

  • ．USB to console cable (Option)

  • ．RS-232 to console cable (Option)
