» Supports 2 x PCIe mini and 1 x 2230/2242 M.2 B key
» Mini PCIe and M.2 with SIM card slots
» 2 PCIe 3.0 x4
» RoHS compliant
Consolidate Your Wireless Network Connectivity

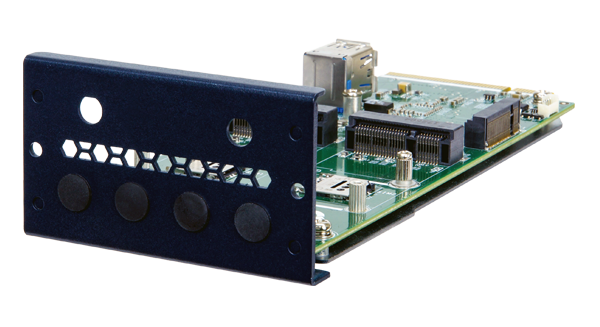

IEI PulM-2P1M is designed with two PCIe Mini slots and one M.2 B-key for supporting extra Wi-Fi or LTE modules. It can enhance wireless network connectivity and provide multi-telecom signal via one single network appliance.
-
Supports two PCIe Mini slots and one M.2 2230/2242 B–key slot
-
On-board SIM card slots for PCIe Mini/M.2 network modules
-
2 PCIe 3.0 x4
Block Diagram
Hardware Installation
The Slot A supports 8 lanes from CPU (1 PCIe x8 or 2 PCIe x4); the Slot B supports 8 lanes from PCH (2 PCIe x4 or 4 PCIe x2). The PulM-2P1M can be installed into the slot A & slot B.
-
Supported devices: PUZZLE-IN001 , PUZZLE-IN001A , PUZZLE-IN004 , PUZZLE-A001 , PUZZLE-A001A , PUZZLE-IN005
Hardware Spec.
| Physical Characteristics | |
|---|---|
| Dimensions (LxWxH) (mm) | 165.50 (L) x 77.8 (W) x 44.2 (H) |
| Storage | |
| Storage | M.2(NGFF) : 1 x M.2(NGFF) 3042/2260 M.2 B key (PCIe/USB2.0(for LTE)/USB3.0) |
| I/O Interface | |
| Expansion | PCI Slot : 2 x mPCIe (PCIe/USB2.0) |
| Wireless | |
| SIM Slot | 4 x SIM card slot |
| Environment | |
| Operating Temperature | 0 ~ 40 °C |
| Humidity | 5% ~ 90% RH, Non-condensing |
| Card Slot Interface | |
| PCIe | 2 PCIe 3.0 x4 |
| Card Features | |
| Controller Chip |
ASM1812 (PCIe Gen2x4 ) FL1100EX (PCI-E To USB 3.0 (4 Port)) |
Ordering Information
| PulM-2P1M-R10 | Two Mini-PCIe and One M.2 Expansion Card Support the Wi-Fi or LTE Module. |
|---|
Package Contents
| Package Content |
|
|---|
