End of Life Notice
* Effective Date: 2021/08/18

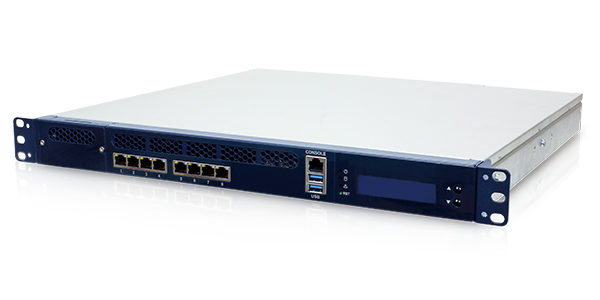

• AMD EPYC™ Embedded 3000 series processor, highperformance System-on-Chip
• Support 8 x GbE RJ-45 via BCM 5720
• 4 x 288-pin DDR4 2666 MHz, UDIMM up to 64GB / RDIMM up to 128GB
• 1 x RJ-45 Console, 2 x USB 3.2 Gen 1 (5Gb/s)
• 2 x 2.5” SATA 3.0 drive bay, 1 x M.2 B-Key (SATA 3.0, USB 3.2 Gen 1 (5Gb/s)), 1 x PCIe Mini card (PCIe 3.0, USB 2.0)
• Support two PCIe x4 slots, one PulM module slot
• Redundant PSUs
Hardware Spec.
| Form Factor | |
|---|---|
| Form Factor | 1U |
| System | |
| CPU |
PUZZLE-A001A-SO2 : AMD EPYC™ Embedded 3201 processor, 8C/8T, up to 3.10 GHz PUZZLE-A001A-SO3 : AMD EPYC™ Embedded 3151 processor, 4C/8T, up to 2.90 GHz |
| Chipset | Integrated in CPU |
| Memory | 4 x DDR4 2133/2666 MHz ECC or non-ECC UDIMM/RDIMM |
| Memory Max. |
4 x 288-pin DIMM UDIMM Up to 64GB / RDIMM Up to 128GB |
| Cooling method / System Fan | 4 x Cooling fans with smart fan |
| Physical Characteristics | |
| Rack Height | 1U |
| Dimensions (LxWxH) (mm) | 426 x 430 x 44.2 |
| Storage | |
| Storage | 2 x 2.5” SSD/HDD Bay |
|
1 x M.2(NGFF)1 x 2260/3042 B key (SATA and USB 3.2 Gen 1 (5Gb/s)) Support SATA SSD and 4G LTE module |
|
| I/O Interface | |
| Ethernet | 8 x LAN |
| I/O Interface | 1 x External RS-2321 x RJ-45 (Console) |
| Expansion | Description:1 x PulM module slot |
| 1 x PCIe mini Card Slot(PCIe 3.0, USB 2.0) | |
| 2 x PCIe x4 | |
| Other Features | |
| TPM | 1 x TPM 2.0 pin header |
| Power | |
| Power Supply | 300W, 100V~240V (Redundant power) |
| Environment | |
| Operating Temperature | 0°C ~ 40°C (32°F ~ 104°F) |
| Storage Temperature | -20°C ~ 75°C (-4°F ~ 167°F) |
| Humidity | 5% ~ 90% non-condensing |
| Certifications | |
| Safety & EMC | CE / FCC/RoHS |
| OS Support | |
| OS Support |
Linux Ubuntu 18.04.04 CentOS 7/ Red Hat/ Fedora EPEL |
Ordering Information
| PUZZLE-A001A-SO3/R-R10 | 1U Rackmount Network Appliance with AMD EPYC™ Embedded 3151 processor, four DDR4 slots, and eight 1GbE , one PulM slot, two PCIe expansion, Redundant Power, RoHS |
|---|---|
| PUZZLE-A001A-SO2/R-R10 | 1U Rackmount Network Appliance with AMD EPYC™ Embedded 3201 processor, four DDR4 slots, and eight 1GbE , one PulM slot, two PCIe expansion, Redundant Power, RoHS |
Package Contents
| Package Content |
|
|---|
