End of Life Notice
* Effective Date: 2022/06/08

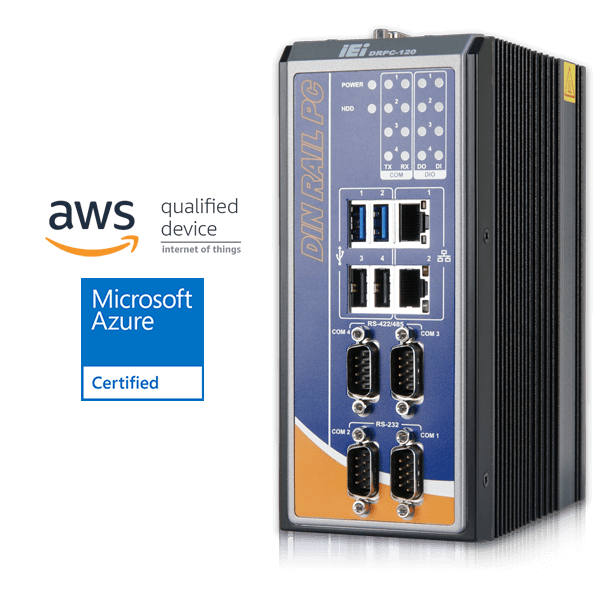

» Intel® Atom™ E3845 1.91GHz
» 1 x 2.5” SATA HDD/SSD drive bay
» DDR3L 1.35V SO-DIMM support
» 8-bit digital I/O (4-bit inputs/outputs)
» IEI iRIS-2400 solution
Hardware Spec.
| Form factor | |
|---|---|
| SBC Form Factor |
CPU: Intel® Atom™ E3845 1.91 GHz Chipset:SoC System Memory: One 2 GB 204-pin DDR3L SO-DIMM pre-installed (system max: 8 GB) |
| I/O Interface | |
| I/O Ports |
2 x USB 3.0 2 x USB 2.0 Ethernet: 2 x RJ-45 1 x PCIe GbE by Intel® I210 controller 1 x PCIe GbE by Intel® I211 controller COM Port: 2 x DB-9 w/3KV isolation protection 2 x DB-9 w/3KV isolation protection 8-bit digital I/O, 4-bit input/4-bit output 1 x VGA, 1 x HDMI™ 802.1 b/g/n 2T2R (optional) |
| Expansion Slots | |
| Expansion Slots |
1 x Half-size PCIe Mini slot (w/o USB signal) 1 x Full-size PCIe Mini slot (supports mSATA, colay with SATA) |
| System | |
| Cooling method / System Fan | Fanless |
| Drive Bays | 1 x 2.5〞 SATA 6Gb/s HDD/SSD Bay |
| Indicator&Buttons | |
| Indicators | Power/HDD/Com port/DIO |
| Color | |
| Color | Black |
| Dimensions | |
| Dimensions | 74.08 x 140 x 171.5 |
| Weight | |
| Weight | 1.4 kg/2.5 kg |
| Environment | |
| Operating Temperature | -20°C ~ 60°C with air flow (SSD) |
| Humidity | 5% ~ 95%, non-condensing |
Ordering Information
| DRPC-120-BTi-E5-LED/2G-R11 | Fanless embedded system, Intel® Bay-Trail E3845 1.91 GHz, TDP 10W, 2GB DDR3L pre-installed memory, 1 x VGA/HDMI™, 8 CH DIO, iRIS-2400 optional,9~30 VDC, LED indicators, RoHs |
|---|
Package Contents
| Package Content |
|
|---|
